pg11 cable gland

Name: pg11 cable gland
Brand: BHADRA ENCLOSURE SYSTEMS
Price: 4.8 INR
Availability: InStock

Price 4.8 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

pg11 cable gland Specification

Operating Temperature
-20C to +80C

Interface
Cable Entry Interface

Input
Cables, wires

Components

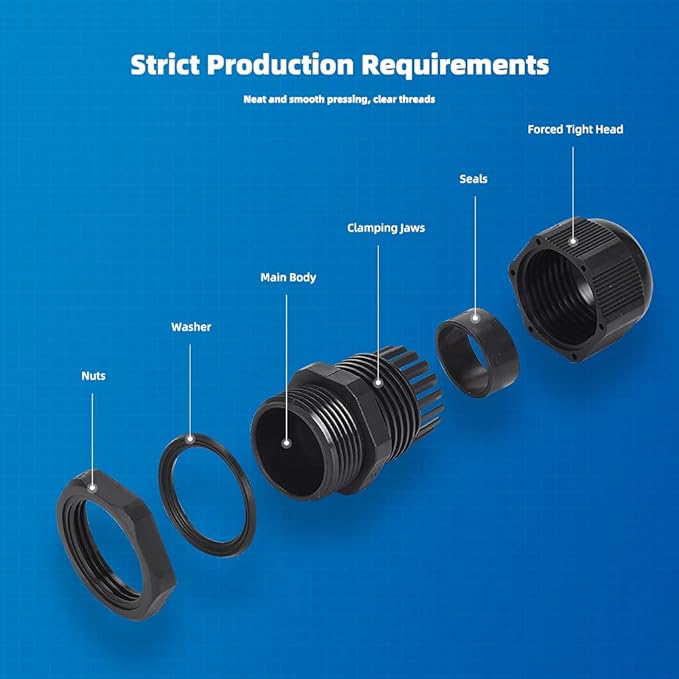

Body, sealing nut, rubber seal, locknut

Output
Secured cable entry

IP Rating
IP68

Features
UV resistant, weatherproof, flame retardant

Usage
Protection of cable entries in electric panels

Product Type
Cable Gland

Application
Electrical, instrumentation and automation panels

Rated Voltage
Up to 450V

Supply Voltage
Up to 450V

Size
PG11

Dimension (L*W*H)
Overall length approx. 39 mm, mounting hole 18.6 mm

Function
Securing and sealing cables entering electrical enclosures

Color
Grey

Weight
Approx. 10 g

Warranty
no

Capacity
For cable diameter 5-10 mm

Current Rating
16A

Thickness
Standard industry thickness

Thread Type
PG11 (ISO 4400/BS 4568)

Installation Method
Hand or spanner tightening

Material
Polyamide (Nylon) PA66

Operating Humidity
0% - 95% (non-condensing)

Flammability Class
UL94 V-2

Lock Nut Material
Polyamide

Tightening Torque
2.5 Nm (recommended)

Cable Range
5 mm to 10 mm

Resistance
Resistant to salt water, weak acids, alcohol, oils, grease, and common solvents

Mounting Hole Diameter
18.6 mm

Sealing Material
Nitrile Rubber (NBR)

Packaging Type
Polybag or carton

Ingress Protection
IP68 (dust tight and protected against continuous submersion)

pg11 cable gland Trade Information

Minimum Order Quantity
1000 Pieces

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

About pg11 cable gland

Material: UL Approved Nylon PA66

Thread Type: PG Thread

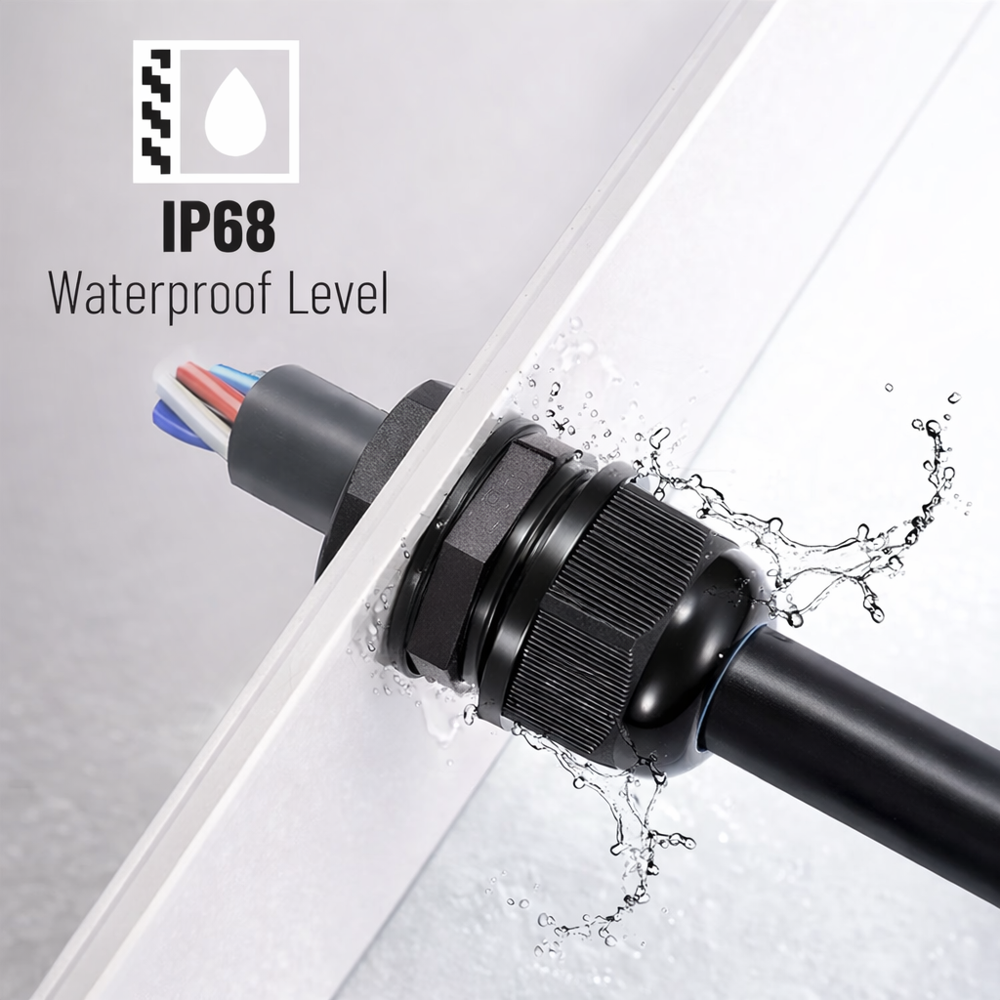

Protection Rating: IP68 Waterproof & Dustproof

Flammability: UL 94 V-2

Temperature Range: -40C to +100C

Performance: Heavy Duty, Durable & Long Life

Resistance: Weatherproof, UV Resistant, Corrosion Resistant

Chemical Resistance: Salt Water, Weak Acid, Oil, Grease, Alcohol, Solvents

Application: Electrical Panels, Control Panels, Junction Boxes, Outdoor Enclosures

Colours Available: Black (RAL 9005), Grey (RAL 7035)

Customisation: Other colours available on request

Usage: Indoor & Outdoor Industrial Applications

PG thread cable gland, nylon cable gland PG type, IP68 waterproof cable gland, heavy duty cable gland, industrial cable gland manufacturer India, nylon PA66 cable gland, electrical cable gland, waterproof electrical gland, dustproof cable gland, long life cable gland, durable cable gland, cable gland for panel, weatherproof cable gland, UV resistant cable gland, cable gland supplier India

Superior Cable Protection

Designed for optimal sealing and securing of electrical cables, the PG11 cable gland safeguards cable entries against dust, moisture, and contaminants. Its robust construction and IP68 protection make it suitable for demanding industrial and outdoor applications, ensuring uninterrupted operation and extended cable life.

Highly Durable and Versatile

Manufactured from polyamide PA66 and fitted with a nitrile rubber seal, this cable gland resists UV exposure, flames, and harsh chemicals, such as salt water and oils. Its adaptability makes it a preferred choice for power panels, control cabinets, and instrumentation enclosures across varied industries.

Simple and Flexible Installation

The PG11 gland is designed for quick and easy mounting. It can be tightened either by hand or with a spanner, requiring only a standard 18.6 mm hole. Components include a body, sealing nut, rubber seal, and locknut, allowing straightforward assembly for reliable cable management.

FAQ's of pg11 cable gland:

Q: How is the PG11 cable gland installed in an electrical panel?

A: The PG11 cable gland can be installed by inserting it into an 18.6 mm mounting hole, then securing it with the provided polyamide locknut. Tighten it by hand or with a spanner up to the recommended 2.5 Nm torque for a secure and effective seal.

Q: What are the key benefits of using a polyamide PA66 PG11 cable gland?

A: Benefits include high durability, flame retardancy (UL94 V-2), and robust resistance to UV rays, salt water, oils, and common solvents. The gland offers reliable IP68 protection, keeping cables safe from dust and water, thus extending cable service life.

Q: Where should the PG11 cable gland be applied?

A: This gland is suitable for use in electrical, instrumentation, and automation panels. It's ideal for both indoor and outdoor installations where cables need to be sealed and protected against harsh environmental conditions.

Q: What process should be followed to properly use the PG11 cable gland?

A: First, prepare the cable by stripping the sheath to the required length. Insert the cable through the gland, ensure the rubber sealing ring fits snugly around it, position the gland in the panel hole, and tighten the locknut to achieve a secure seal.

Q: When is the PG11 cable gland an appropriate choice for my project?

A: Choose the PG11 cable gland when working with cables of 5-10 mm diameter, and when your project demands ingress protection (IP68), resistance to chemicals, or outdoor and industrial durability up to 450V and 16A.

Q: What is the usage capacity of the PG11 cable gland?

A: The PG11 cable gland is engineered for a cable diameter range of 5 mm to 10 mm and is suitable for voltage ratings up to 450V and current ratings up to 16A.

Q: How does the PG11 cable gland ensure reliable electrical protection?

A: Its nitrile rubber (NBR) seal and robust polyamide body provide IP68 ingress protection, preventing dust and water ingress, while the flame-retardant and chemically-resistant materials safeguard cables in critical environments.
